Automated Bracket Removal (ABR) Processing Options

Automated Bracket Removal (ABR) Processing Options

Automated Bracket Removal (ABR) File Processing Options

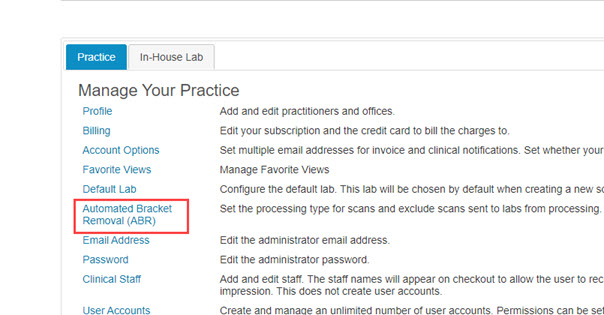

For customers using Automated Bracket Removal (ABR), we added some options to give you the flexibility to control which files do or do not get processed by Automated Bracket Removal.  If ABR is enabled on your account, a new menu option displays under Account Settings, Automated Bracket Removal (ABR)

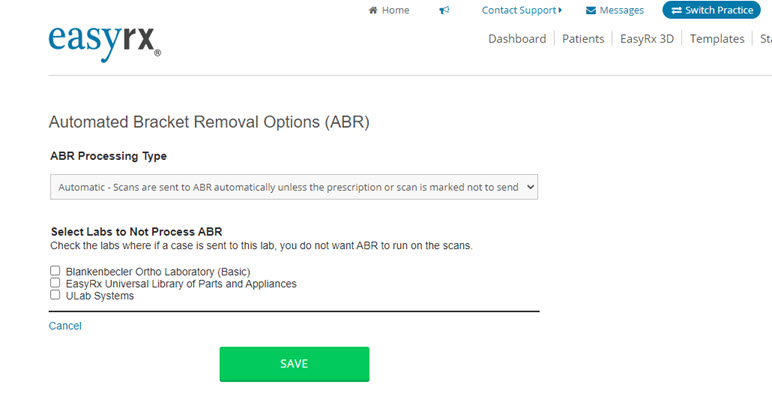

When opened, the Automated Bracket Removal (ABR) Options page opens:



Under ABR Processing Type, there are two options:




Scans are sent to ABR automatically unless the prescription or scan is marked not to send

With this option enabled, by default, any scan with brackets is automated evaluated and brackets removed, creating a new STL file with brackets removed.    If there is a prescription or file you don't want ABR to run, you can exclude the Rx or file.

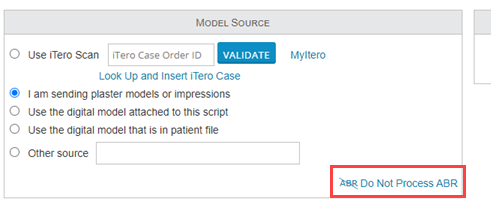

With this option enabled, when creating or editing aRx, the option to No Process ABR is displayed.  By clicking this, scans are not sent to ABR

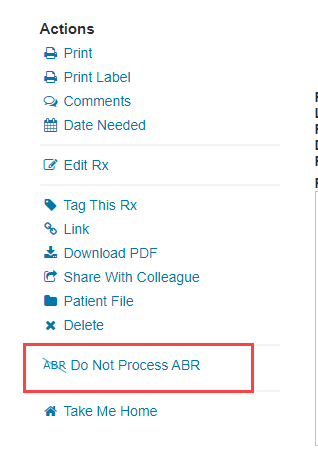

When viewing a Rx, the option displays on the left menu panel:




If the scans are marked to not send to ABR, a check is displayed, indicating the scans were not sent to ABR.

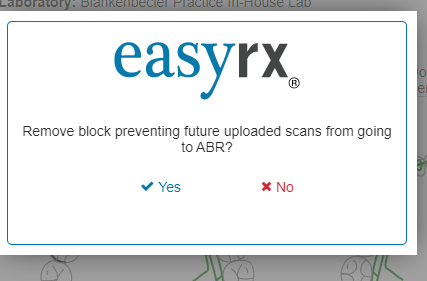

If you decided to send the scans to ABR, click the link and answer Yes to remove the block from preventing scans from going to ABR.



A word about timing with Automatic Processing enabled.  As the name implies, with Automatic enables, scans are sent to ABR automatically.  To provide the best outcome as possible, the optimized file is sent to ABR, and this happens when the file is finished optimizing, which is roughly 5 minutes are scans are uploaded or attached via a integration.

If you want to exclude scans from automatically being sent to ABR, you need to decide when the case is submitted or by a couple of minutes after.  Once a scan is sent to ABR, you can't choose to un-submit it from ABR.

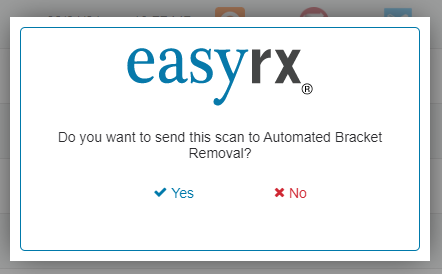

From the patient screen, when a file is manually uploaded to a patient record, a prompt appears asking if you want block this file from going to ABR:



Click Yes to send the scan to Automated Bracket Removal
Click No to not send the scan to Automated Bracket Removal



On- Demand - Choose which scans are processed by ABR at prescription or individual file level


With this option enabled, scans are not sent to ABR automatically, you must either mark the prescription to send the scans to ABR or mark the file to send to ABR.

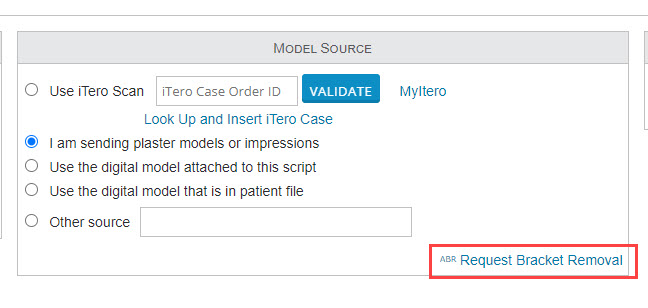

With this option enabled, when creating or editing aRx, the option to Request Bracket Removal is displayed.  By clicking this, scans are sent to ABR



When viewing a Rx, the option displays on the left menu panel:

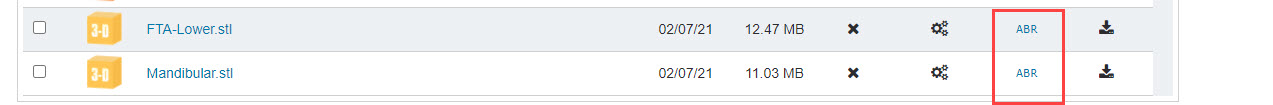

When a file is manually uploaded to a patient record, you can request ABR by clicking the ABR link next to the file:








Select Labs to Not Process Scans


For practices, practicess can also designate certain labs as labs you don't want ABR to run, regardless if the Automatic or On-Demand Option is enabled. For example, you may be using a Tracker lab and don't want ABR to run on any scans sent to your tracker lab. Or you may wish to only have ABR run on scans sent to your In-House lab, not to any commercial lab you send cases.

Check the box next to the lab you don't want ABR to run






As always, we're here to help.  Please contact support with questions.

Thanks,

The EasyRx Team
