Remove attachments with EasyRx 3D Bracket Removal (EBR)

EasyRx 3D Bracket Removal (EBR) is only an available add-on feature for practices or labs currently using our 3D software

1. Find and select the file you would like to edit in your EasyRx 3D software with EBR

1. Once selected, click "Edit" and continue with orienting the model.  Once oriented, adjust your view of the mode to focus on the teeth you would like to begin removing attachments from.

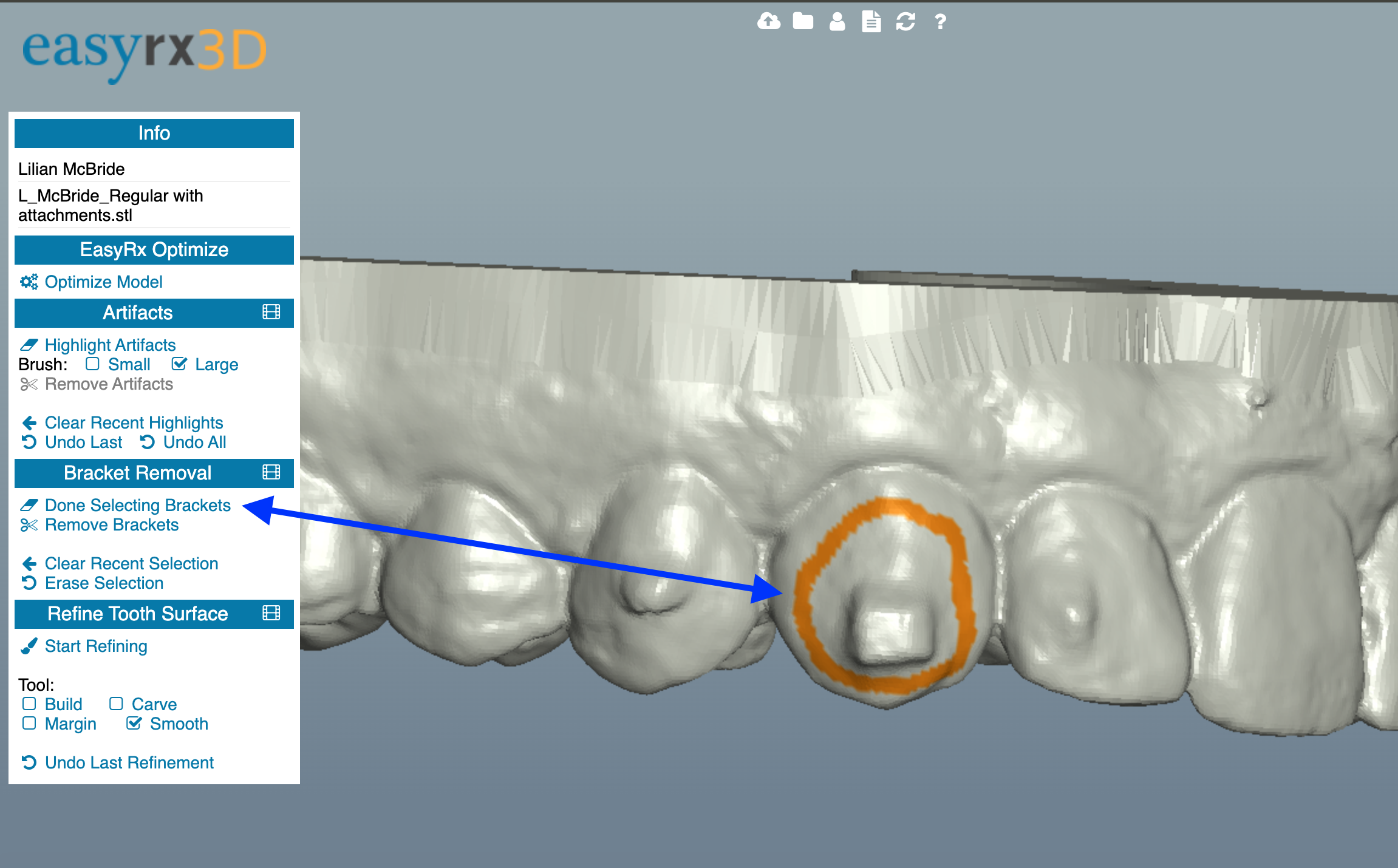

1. Go over to your "Bracket Removal" section and click on "Select Brackets".  Go over the tooth you need to remove the attachment from, hold down your Shift key and left mouse click, and draw a line/circle around the material.  Be sure it is a solid line (no gaps).


1. Once you're happy with your selection, click "Remove Brackets".  When you see that information has been removed you can continue editing. Don't forget to click "Save" when you're done!
