Setup and Using MiiCraft MiiUtility Integration

Setup and Using MiiCraft MiiUtility Integration

Effective with the July 28, 2018 update to EasyRx, EasyRx now integrates with MiiCraft MiiUtility software, allowing you to easily select based STL files in EasyRx and open these files in MiiUtility.

Integration Notes:
  • The integration can be enabled on any machine with MiiUtility installed
  • MiiUtility software version 5.0.5t1 or higher is required
  • The Integration requires the EasyRx Web Extension v2.0.3 to be installed on each machine with the integration enabled
  • The EasyRx Web Extension is supported on Chrome and FireFox.
  • If you run both Chrome and FireFox on the same machine, the web extension installer must only be run one time.

Enabling the integration
  • For practices, go to Account Settings -- 3rd Party Integrations and move the slider to the on position under MiiCraft.
  • For labs, go to Configure --> 3rd Party integrations and move the slider to the on position under MiiCraft





When the integration is enabled, EasyRx automatically downloads the EasyRx Web Extension installer.  After the installer has finished downloading, click open to run the installer. Reminder: The EasyRx Web Extension must be installed for the integration to work.


Follow the instructions to run the installer. It will only take a few seconds for the installer to complete. Once the Web Extension is properly installed, the integration is ready to go.

NOTE: The EasyRx  Web Extension is only compatible with PCs. It is currently not compatible with MAC OS platform.

Using the integration
You can access the integration from the View STL Print List Screen and when viewing Patient Information:

Using the integration from the View STL Print Print Screen
Go to the EasyRx 3D - View STL Print List Screen

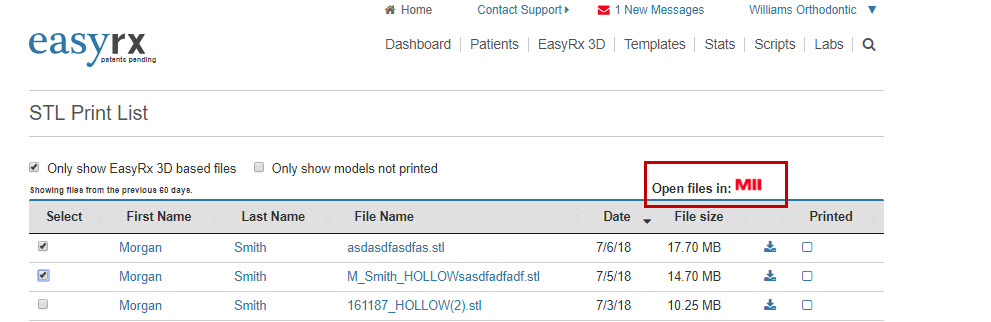

This loads the STL Print List screen:


From this screen, select the files to be printed by clicking the appropriate checkbox and click the MiiUtility icon.   EasyRx will launch MiiUtility software and "pass in" the selected STL files.  One click to open files for 3D printing!

Using the from the Patient Screen

To use the integration, lookup the patient, click View and scroll down to the File Uploads section.  You will see the MiiUtility logo next to each file in the File Uploads section.

Click the MiiUtility logo on the row of the file you wish to open to launch the integration.




When the logo is clicked, this automatically open MiiUtility and passes in the STL.



Opening Multiple Files from the Patient Screen
To open multiple STL files, leave MiiUtility software open, go back to EasyRx and click the logo on the row of the file you wish to open. This will pass in additional STL files to the already open copy of MiiUtility.

Have questions? Need help with setup?  Don't hesitate to contact us.

Thanks,

The EasyRx Team
