Setup and Using MoonRay RayWare Software integration

Setup and Using MoonRay RayWare Software integration

Effective with the May,  2018 update to EasyRx, EasyRx now integrates with MoonRay RayWare software, allowing you to easily select based STL files in EasyRx and open these files in RayWare.

Integration Notes:
  • The integration can be enabled on any machine with RayWare installed
  • RayWare version 1.4.0 3rd Party integration or higher is required
  • The Integration requires the EasyRx Web Extension v2.0 to be installed on each machine with the integration enabled
  • The EasyRx Web Extension is supported on Chrome and FireFox.
  • If you run both Chrome and FireFox on the same machine, the web extension installer must only be run one time.

Enabling the integration
  • For practices, go to Account Settings -- 3rd Party Integrations and move the slider to the on position under RayWare.
  • For labs, go to Configure --> 3rd Party integrations and move the slider to the on position under RayWare.






When the integration is enabled, EasyRx automatically downloads the EasyRx Web Extension installer.  After the installer has finished downloading, click open to run the installer. Reminder: The EasyRx Web Extension must be installed for the integration to work.


Follow the instructions to run the installer. It will only take a few seconds for the installer to complete. Once the Web Extension is properly installed, the integration is ready to go.

NOTE: The EasyRx  Web Extension is only compatible with PCs. It is currently not compatible with MAC OS platform.

Using the integration
You can access the integration from the View STL Print List Screen and when viewing Patient Information:

Using the integration from the View STL Print Print Screen

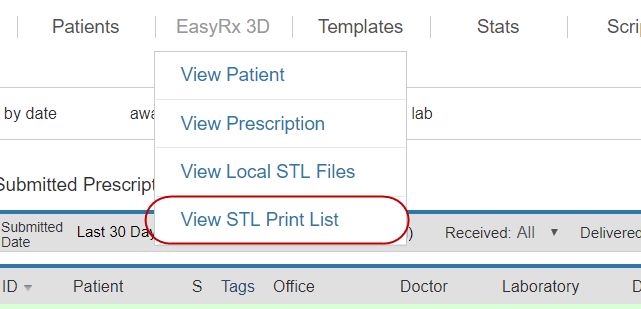

Go to the EasyRx 3D - View STL Print List Screen

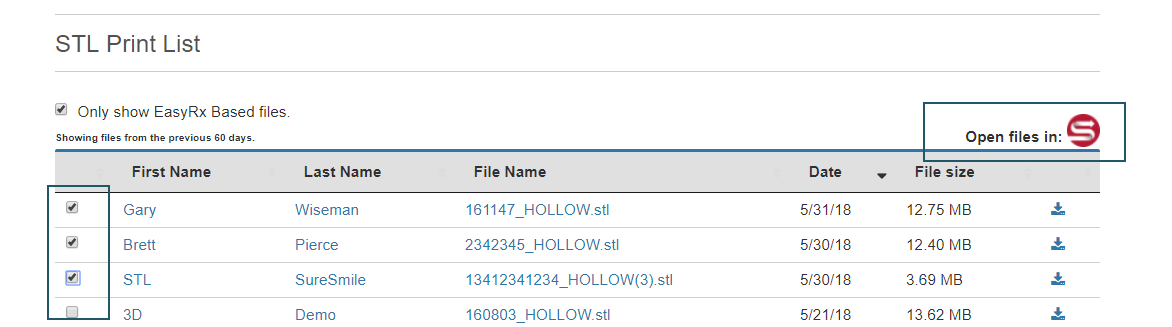

This loads the STL Print List screen:


From this screen, select the files to be printed by clicking the appropriate checkbox and click the RayWare icon.   EasyRx will launch RayWare software and "pass in" the selected STL files.  One click to open files for 3D printing!

Using the from the Patient Screen

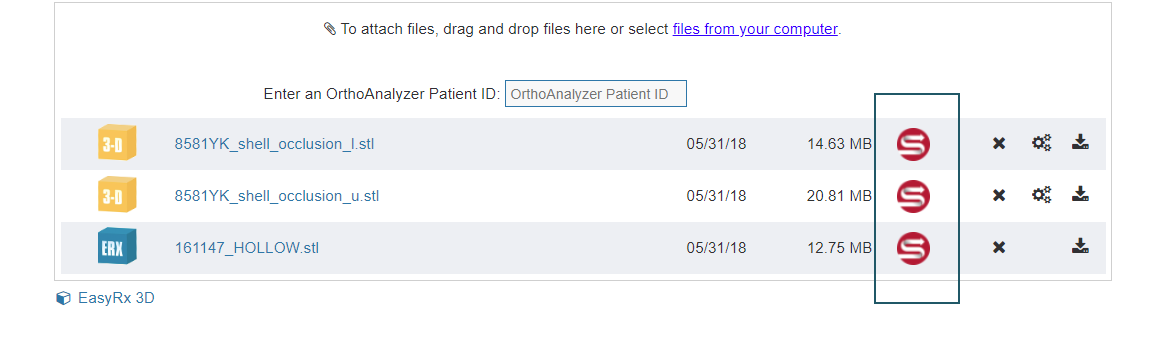

To use the integration, lookup the patient, click View and scroll down to the File Uploads section.  You will see the RayWare logo next to each file in the File Uploads section.
Click the RayWare logo on the row of the file you wish to open to launch the integration.



For example, to open the 161147_Hollow.STL file, click the RayWare logo on that row.

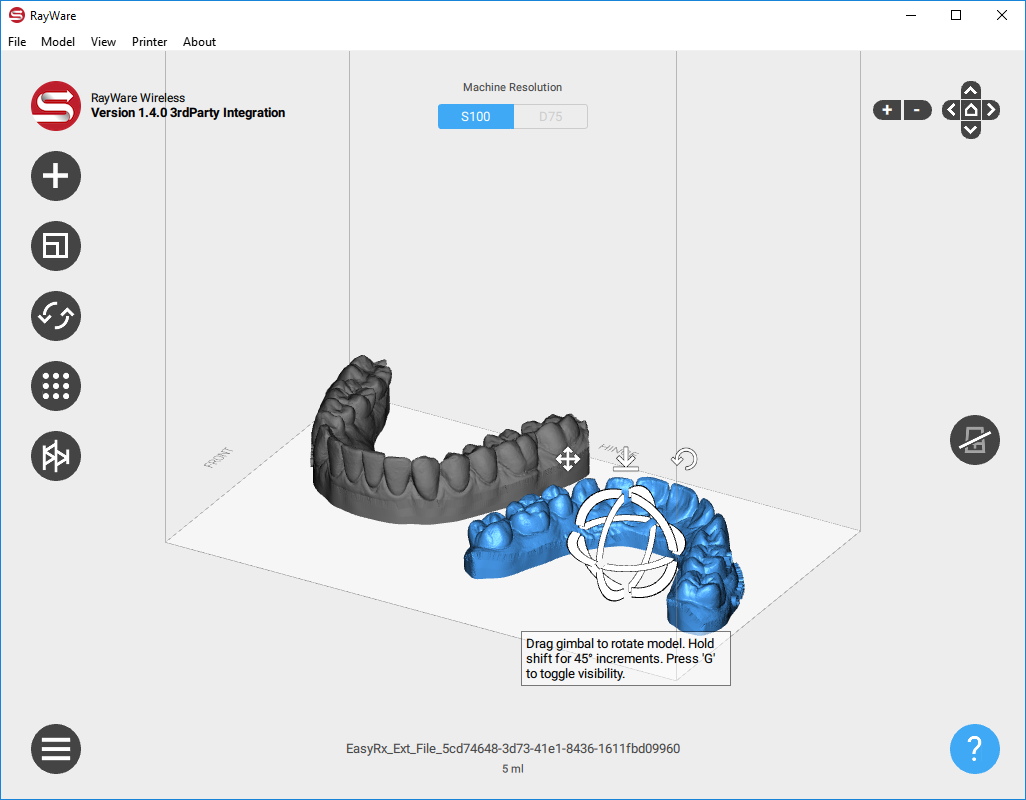

When the logo is clicked, this automatically open RayWare and passes in the STL to the RayWare software.



Opening Multiple Files from the Patient Screen
To open multiple STL files, leave RayWare software open, go back to EasyRx and click the logo on the row of the file you wish to open. This will pass in additional STL files to the already open copy of EasyRx:

Have questions? Need help with setup?  Don't hesitate to contact us.

Thanks,

The EasyRx Team
