• Print Label has been tested on Dymo Plug N'Play Label Printers. It is intended to print a barcode with legible information about the patient, doctor and practice associated with the prescription.


• The currently offered dimensions of the label are 2in x 1in

• In order to get optimal print results, it has appeared necessary to adjust paper settings via the web browser or system print dialog. These may vary from printer to printer. There will be some trial and error to get the labels to print properly.

• We recommend vinyl labels if you plan to stick the label on the model.  A standard label will not properly stick to the model.  A standard label is fine if you plan to place the label on the model bag



  To print a label, click Print Labels from the View Rx screen

  Choose your label printer from the list of installed printers on the computer

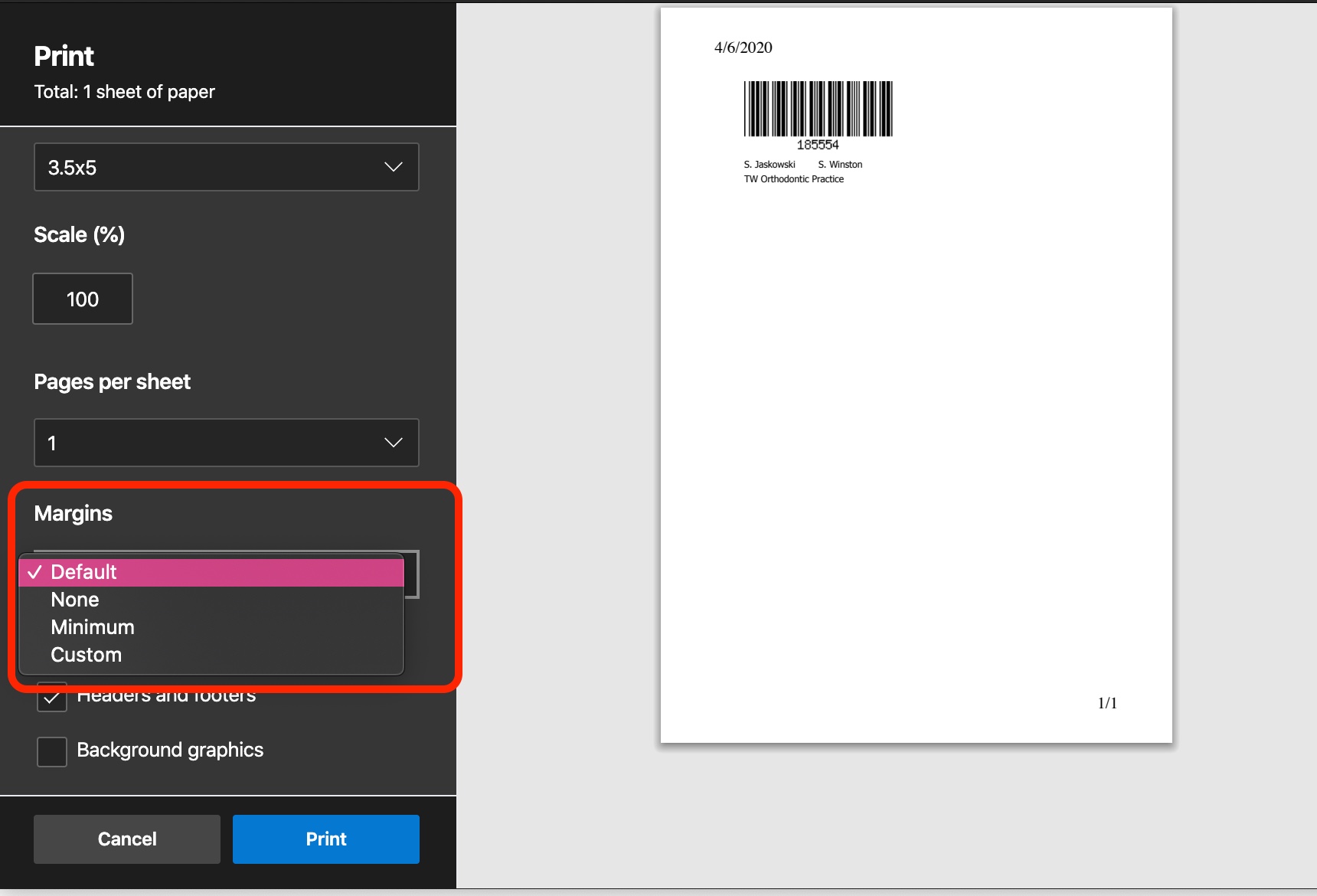

  The additional printer settings can be found under "More Settings" in the Print dialogue window:




Continuous Printing

• Settings that may produce an optimal print are whether the printer includes a paper option for Continuous that will cut off the printed label after content has finished.



• If Continuous printing is not available, it may be necessary to set an absolute paper size of 2in x 1in to get the label printer to cut off at the desired point


Margins

• Printers appear to vary considerably in their use of default or calculated margins. The Print label is intended to have the minimum amount of in-built margin to avoid content being cut out. However, this does not always fix the issue of excess margin being applied by the printer that effectively pushes content off the label.



  You'll need to try different margin settings to determine the optimal margin setting







  See your browser dialog or system dialog for the ability to adjust margins as needed
