Work Ticket Override for Workflows

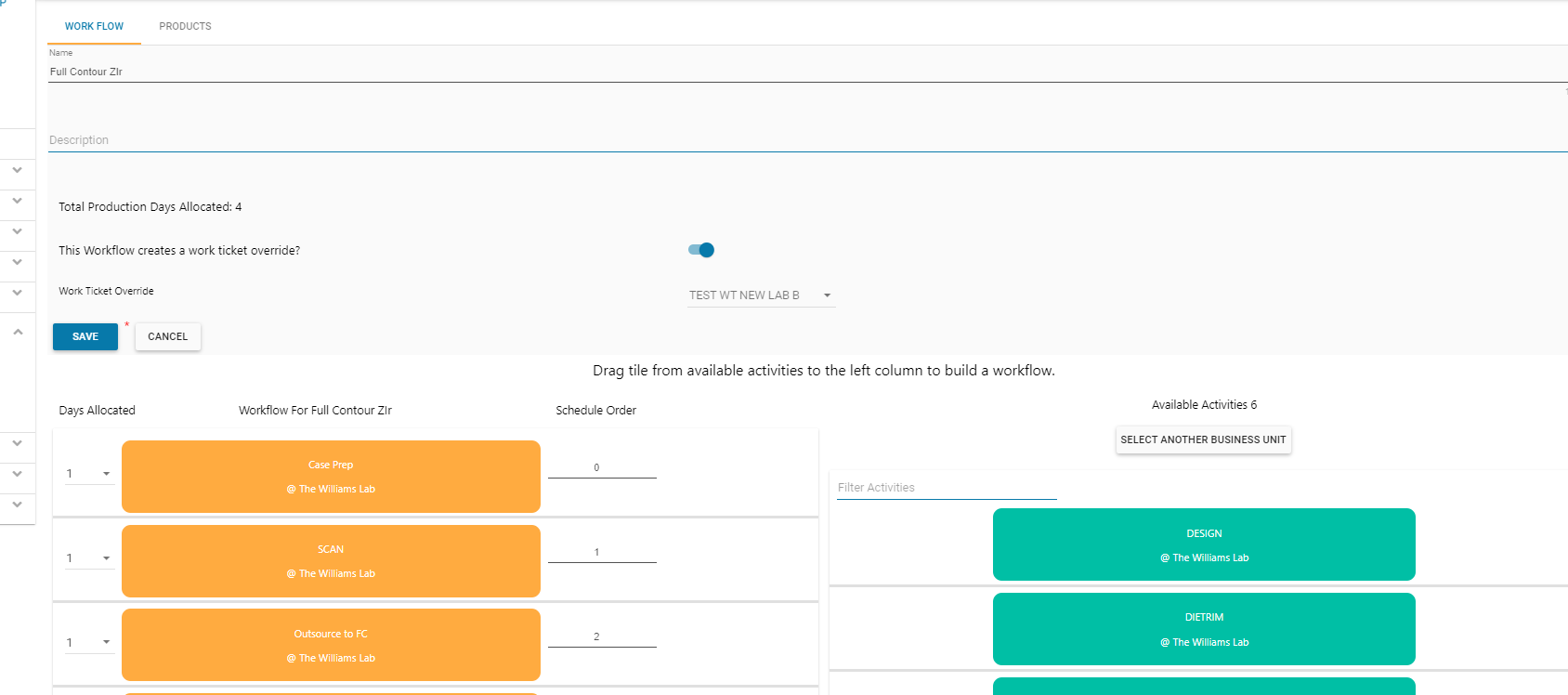

VisualDLP can be setup to print a custom work ticket based on the workflow present in the order. To do this, you must first create a new workticket and save it for your business unit in the Report Designer module. Then, in the workflow editor, select the workflow you want to attach a custom work ticket to and specify that it has a Work Ticket override. Then select the override.

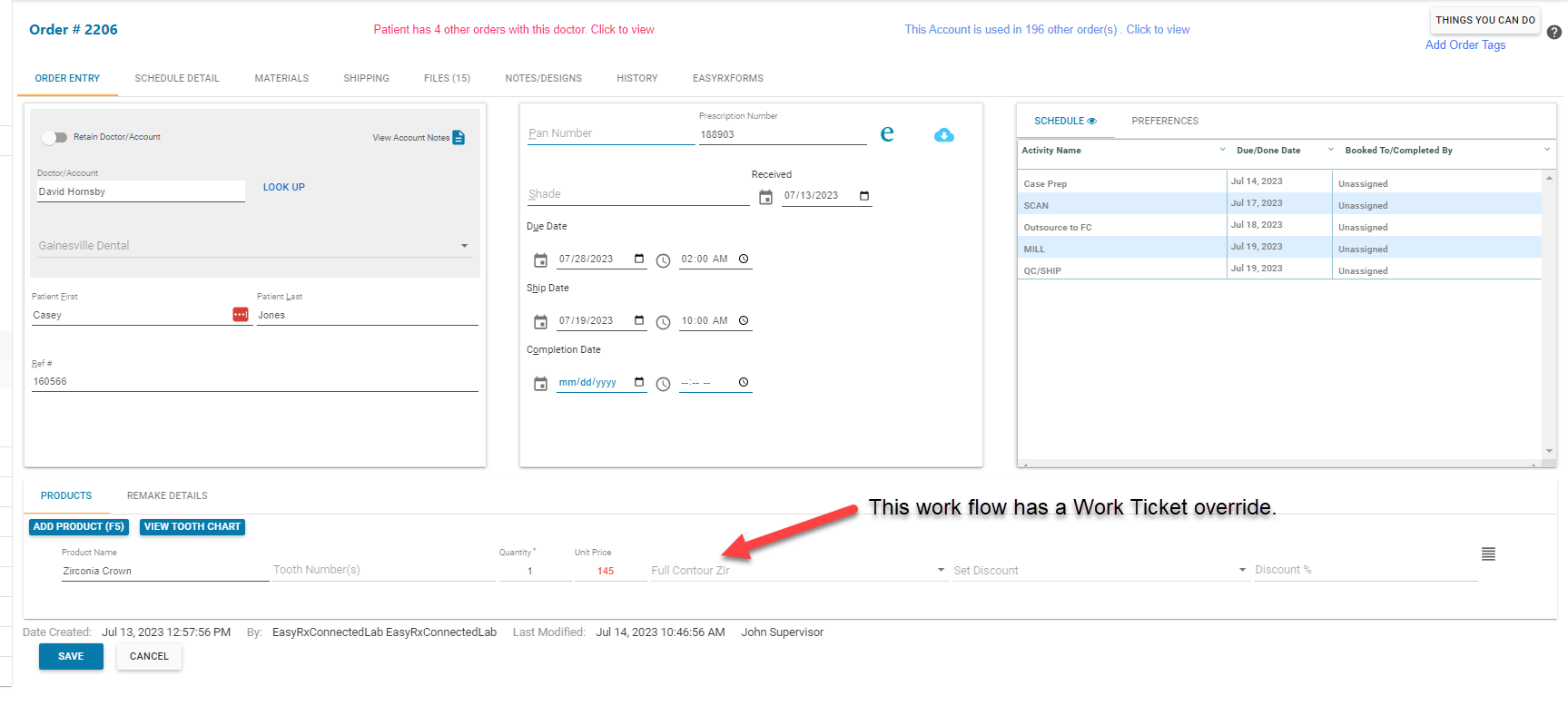

When an order is entered that uses that workflow, the custom work ticket associated with the workflow will be printed.

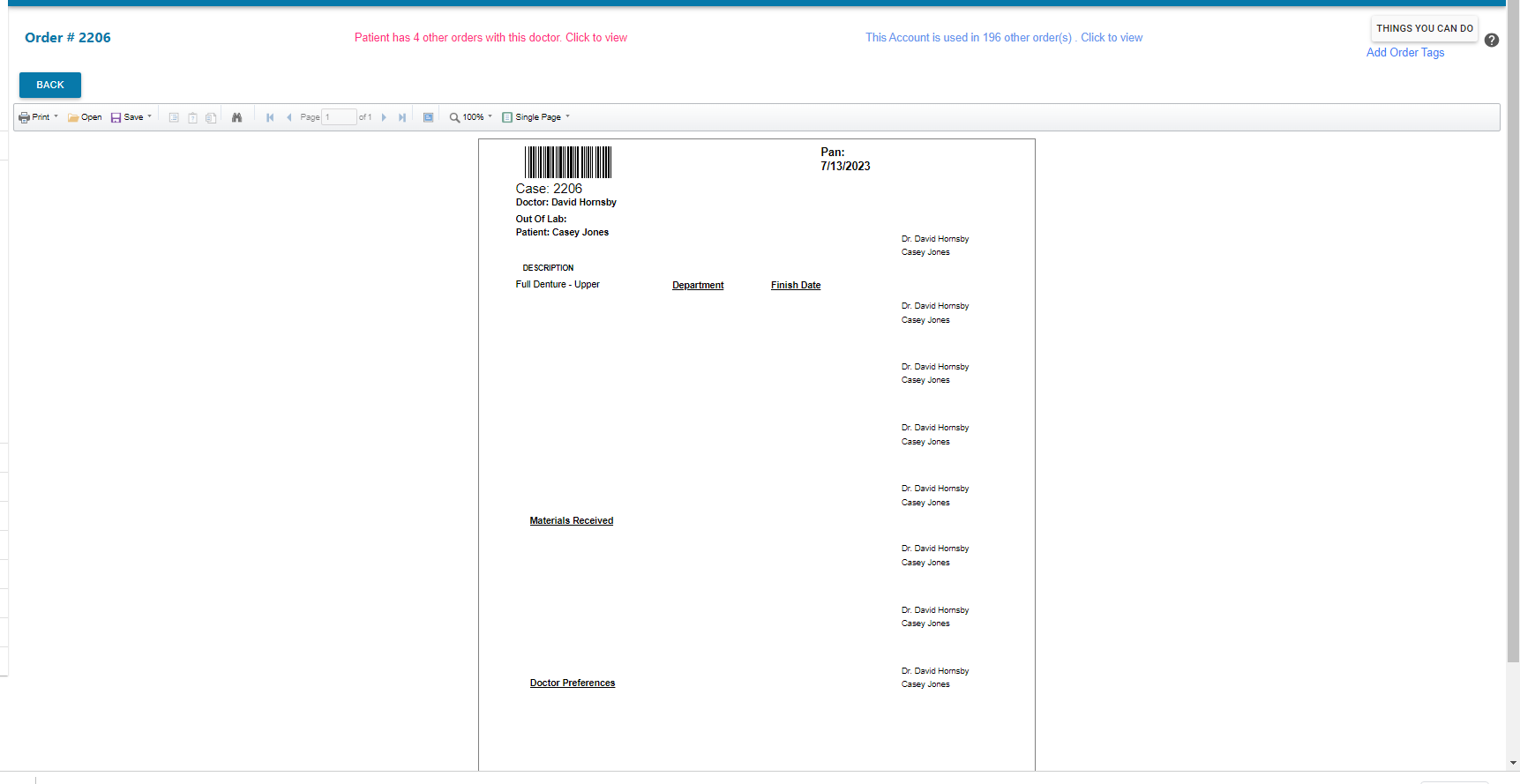

Original Work Ticket

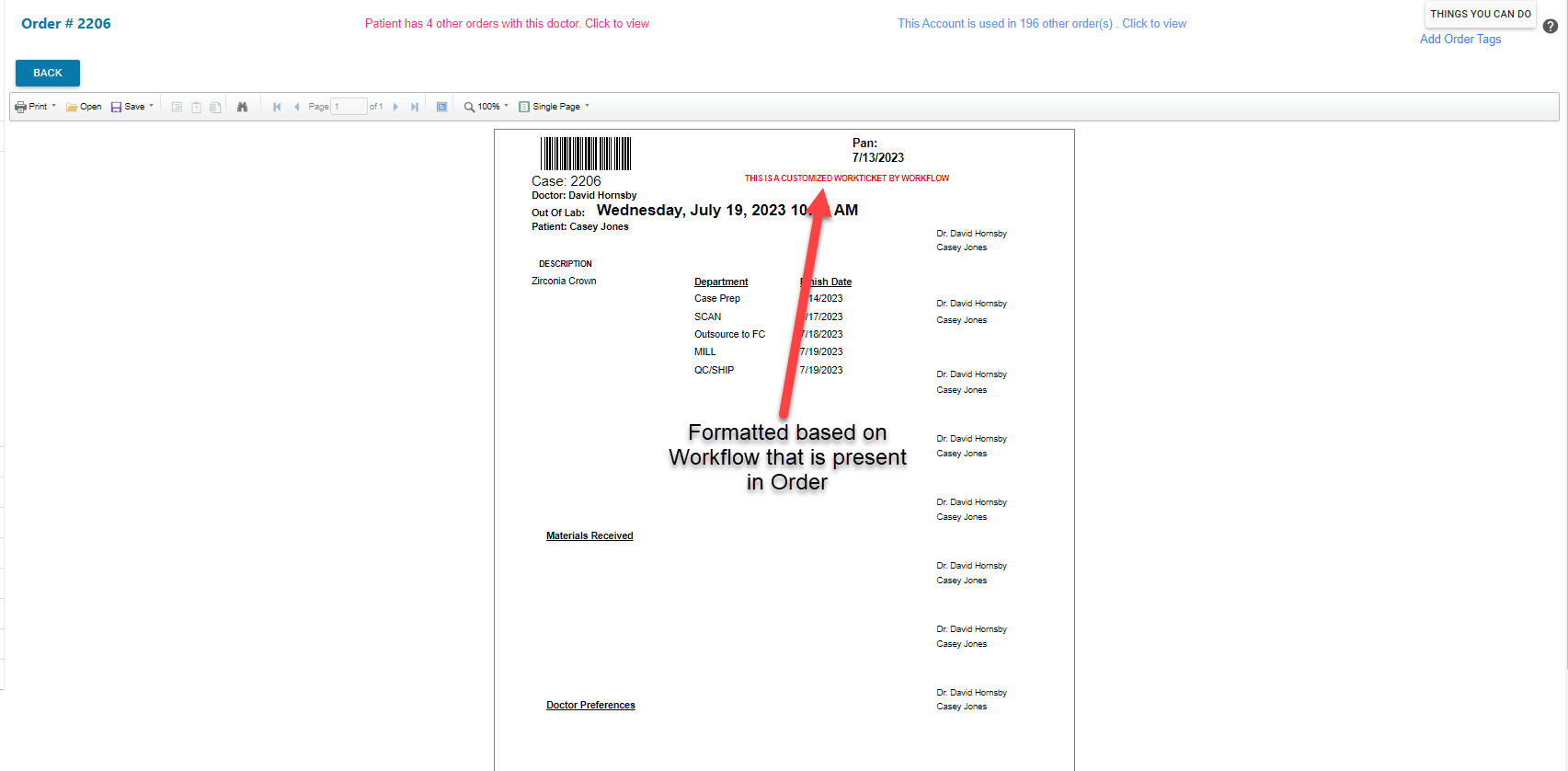

Custom Work Ticket Override for the Full Contour Zir work flow.
